Stationary Type

Heated chambers are used for a variety of industrial applications, including drying, baking components, parts or final products. It can be used for large or small volume applications, in batches and operated at a variety of temperature ranges, sizes and configurations.

Features :-

  • Optional alarm and timer can be provided.
  • The chambers can be made using Mild Steel or Stainless Steel.
  • Aluminum or SS trays can be stacked inside the oven as per requirement.
  • Axial fans are installed within the oven chamber to ensure proper heat circulation.
  • Body can be made in Mild steel/ Stainless steel as per the customer requirements.
  • Heating/ drying of any moisturized item eg: Betel nuts, Amla, removing of moisture from the product.
  • Specially designed control panel supplied with electric heaters and temperature control, temperature range (Room temp – 300ºC).

Technical Specifications

12 Trays 24 Trays 48 Trays 60 Trays
Motor 0.5 HP Single Phase:1 No. 0.5 HP 3 Phase : 1 No. 1 HP 3 Phase : 2 Nos. 1 HP 3 Phase : 2 Nos.
Heater 0.75 kw : 6 Nos. 1 kw : 9 Nos. 1/1.5 kw : 9 Nos. 1/ 1.5 kw : 12 Nos.
Electrical load 5 kw 8.5 kw 13.5 to 19.5 kw 19.5 kw to 28.5 kw

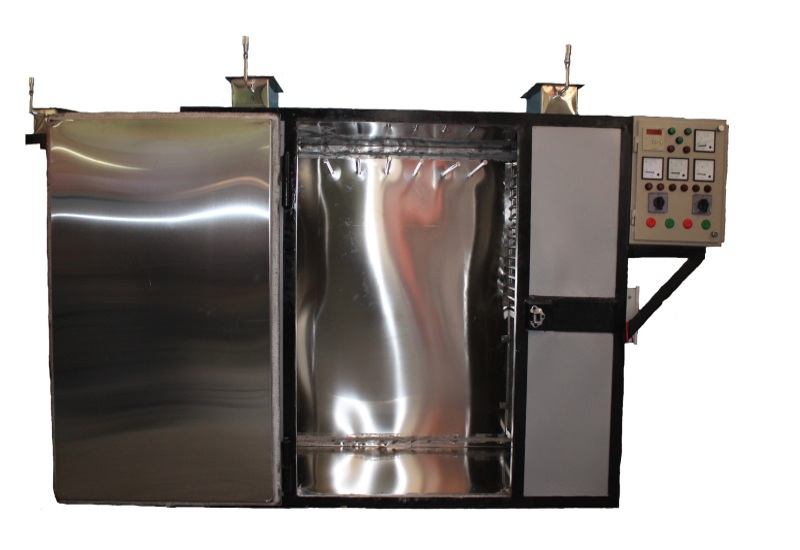

industrial oven heated chamber

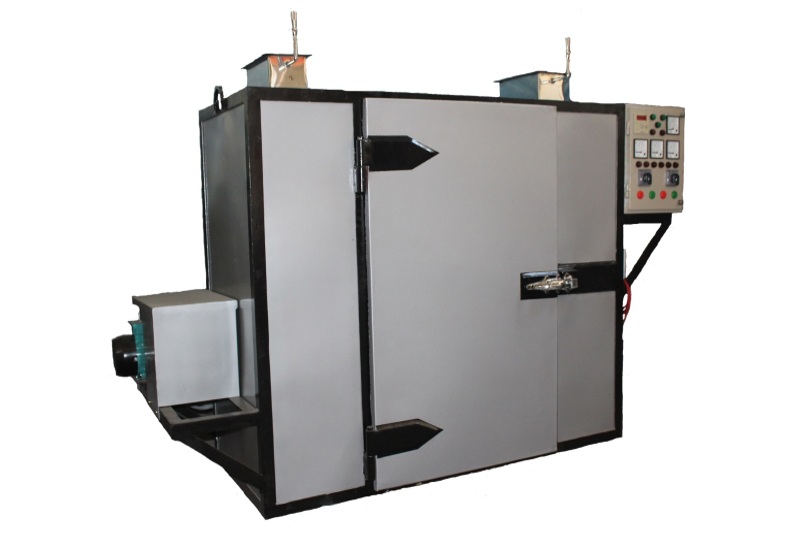

industrial oven heated chamber
